Nautor AB · Sloop

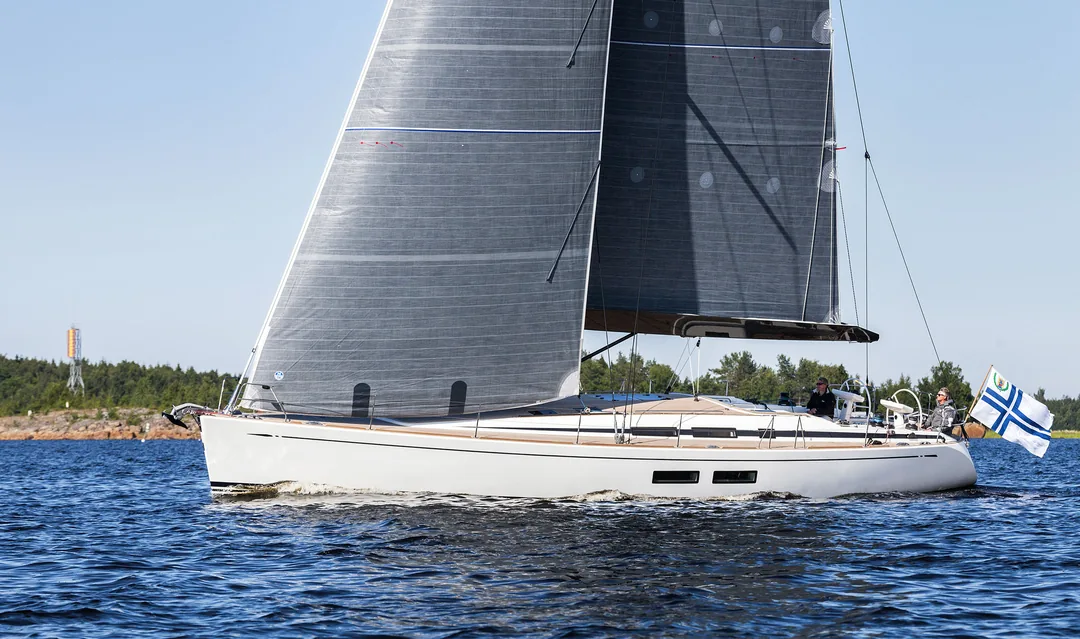

SWAN 54
Start with a sail plan for how you sail, or choose from profiles already matched to this boat.
Known boat geometry
Rig data,
ready to verify.
Matched sails 224
SWAN 54 Sloop rig
Model reference · final dimensions require onboard verification
P 20.08 m Mainsail luff
E 6.70 m Mainsail foot
I 20.92 m Forestay
J 5.94 m Fore triangle
ISP 22.54 m Spinnaker hoist
SPL 6.51 m Spinnaker pole
LOA 16.440 m Length overall
Visual sail selection
See the sail.
Then inspect the data.
Browse sail profiles matched to this boat, then open measured dimensions and observed ranges in the detail panel. Want a complete setup? Plan an inventory around how you sail.
Main sail
Headsail · Jib
J1
Calculating price…
J3
Calculating price…
J4
Calculating price…
Headsail · Genoa
G1
Calculating price…
Code Zero
CODE 0
Calculating price…
Gennaker
A1
Calculating price…
A2
Calculating price…
A4
Calculating price…
A4.5
Calculating price…
A5
Calculating price…
Historical sail data
How these numbers are calculated.
Every profile summarizes measurements observed on matching boats. It is useful comparison context, not a production specification.
Example: J1 areaPositions use actual measurement values
Min61.2m²
P1064.3m²
Median66.8m²
P9070.4m²
Max71.0m²
Collect matching measurements
Each dimension uses valid records from the same boat model and sail profile.
Keep the typical range
P10–P90 contains the middle 80% of observations. The lowest and highest 10% remain outside the displayed range.
Use the median as centre
The median is the middle observation, so an unusual measurement affects it less than an average.
Final dimensions are confirmed onboard before design review and production.
Model data is context, not a build specification. Rig version, hardware and final onboard measurements are confirmed before production.
